Conductive Tape

Conductive tape is a metallized textile made of polyester fibers electroplated with metals such as copper and nickel.
It delivers excellent electrical conductivity and shielding efficiency, alongside oxidation and corrosion resistance, making it an ideal material for conductive shielding in all kinds of electronic products.
Using polyurethane polyester fabric as the base material, it undergoes pre-treatment followed by electroplated metal coating to gain metallic properties and form conductive fiber fabric.

Color: Silver Gray
Thickness: 0.03 mm
Adhesion (kgf/inch): ≥0.8
Width: 1070mm
Length: 50m

Conductive Tape Technical Data Sheet

Item	Data
Total Thickness	0.03mm
Surface Resistance	≤0.05 Ω/in² (Test Size: 76mm×25.4mm)
Volume Resistance	≤0.05 Ω (Test Size: 25.4mm×25.4mm)
Peel Adhesion	≥0.8 kgf/inch
Shielding Effectiveness	60~80 dB (10MHz~3GHz)
Abrasion Test	＞500,000 cycles
Salt Spray Test	Class A-10 after test (5% NaCl solution, 48 hours)
Holding Power	≥48 hours
Elongation Rate	≥10%, Test Standard: JIS L 1096
Temperature Resistance	Short-term: -40℃ ~ 180℃; Long-term: -10℃ ~ 80℃

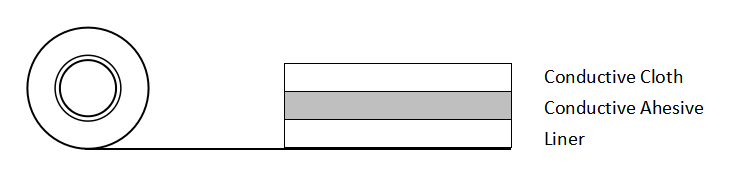

Conductive Tape Structure

Backing Material: Conductive Cloth
Adhesive: Conductive Adhesive
Liner: Yes

Conductive Tape Features

Soft, smooth and air-permeable
Flame-retardant composition
Excellent secondary processing performance including surface adhesive coating and lamination
Easy die-cutting and anti-static performance
Non-toxic, odorless, stable against decomposition, waste is easy to dispose of
Lighter weight and easier to cut compared with conventional metal materials
Compliant with RoHS directive, halogen-free certified, eco-friendly material

Conductive Tape Applications

Widely applied in computers, mobile phones and other electronic and electrical appliances.
Mainly used to shield or isolate electromagnetic wave and radio frequency interference during high-frequency transmission.
