Non-silicone Kapton tape
Non-silicone Kapton tape is made with a P-based substrate, uniformly coated with a special non-silicone pressure-sensitive adhesive. It can accommodate production processes with specific requirements and is particularly suitable for fields with high demands on electronic shielding, such as preventing silicon contamination.
- Color: Brown
- Backing: PI
- Adhesive: Silicone-free PSA
- Liner: Yes
- Thickness(um): 35
Non-silicone Kapton tape Technical Data Sheet
| Color | Brown |
|---|---|
| Thickness(um) | 35 |
| Backing | PI |
| Adhesive | Silicone-free PSA |
| Peeling force(N) | 2.6 |
| Temperature resistance(℃) | 260℃*10min |

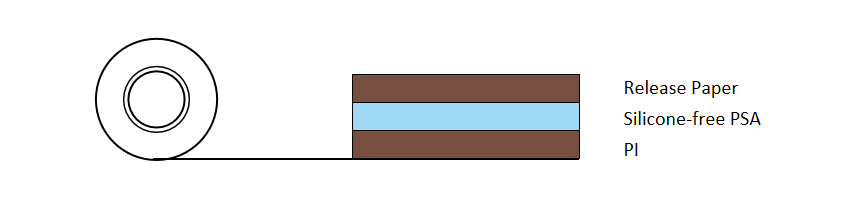

Non-silicone Kapton tape Structure
Non-silicone Kapton tape Features
- Excellent high temperature resistance, no residue after reflow solder removal.
- The non-silicone design eliminates potential bonding hazards caused by silicone contamination on the surface of electronic products.
- It possesses good initial adhesion, allowing for seamless attachment with minimal effort.
Non-silicone Kapton tape Applications
- Applied to SMT fields with high bonding requirements, such as automotive electronic control systems, laser radar and optical communication modules, semiconductor packaging processes, lead frame protection, and prevention of resin leakage.
